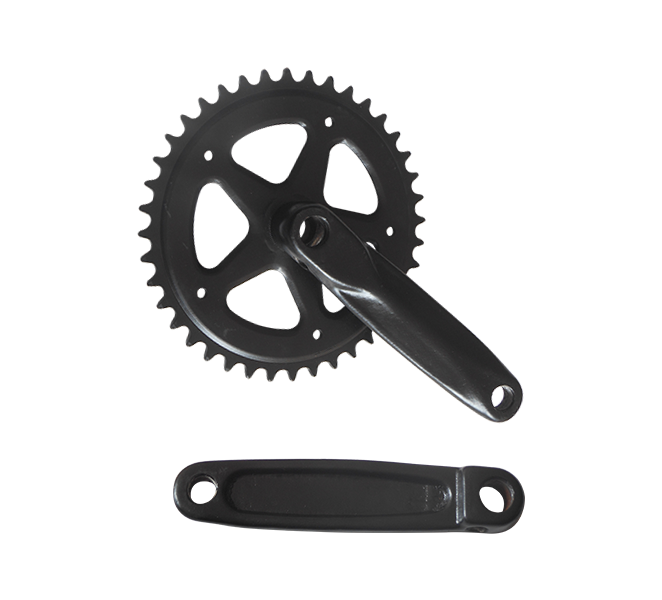

Chain Wheel & Crank

Single Speed Arjuna 48Tx7”CC



NO. OF TEETH
48
PITCH
12.7
TYPE
ARJUNA CUT
CRANK LENGTH
7” CC
OUTER DIA
199
BB AXLE HOLE
15.86-15.92
ROOT DIA
186.1
COTTER PIN HOLE
9.55-9.63
PITCH CIRCLE DIA
194.1
LOCATION
4.76-5.13
THREAD
9.16-20 TPI
FINISHING
Chrome Plated or Powder Coated

Single Speed Arjuna Cut 44Tx7”CC



NO. OF TEETH
44
PITCH
12.7
TYPE
ARJUNA CUT
CRANK LENGTH
7” CC
OUTER DIA
183.65
BB AXLE HOLE
15.86-15.92
ROOT DIA
169.85
COTTER PIN HOLE
9.55-9.63
PITCH CIRCLE DIA
177.85
LOCATION
4.76-5.13
THREAD
9.16-20 TPI
FINISHING
Chrome Plated or Powder Coated

Single Speed 44T Wide with Guard



NO. OF TEETH
44
PITCH
12.7
TYPE
Star CUT
CRANK LENGTH
6.5” CC
OUTER DIA
183.65
BB AXLE HOLE
15.86-15.92
ROOT DIA
169.85
COTTER PIN HOLE
9.55-9.63
PITCH CIRCLE DIA
177.85
LOCATION
4.76-5.13
THREAD
9.16-20 TPI
FINISHING
Chrome Plated or Powder Coated

Single Speed 40T Jumbo crank without Guard



NO. OF TEETH
40
PITCH
12.7
TYPE
Star CUT
CRANK LENGTH
5.5” CC
OUTER DIA
166.5
BB AXLE HOLE
15.86-15.92
ROOT DIA
153.8
COTTER PIN HOLE
9.55-9.63
PITCH CIRCLE DIA
161.8
LOCATION
4.76-5.13
THREAD
9.16-20 TPI
FINISHING
Chrome Plated or Powder Coated

Single Speed 44T Jumbo crank without Guard



NO. OF TEETH
44
PITCH
12.7
TYPE
Star CUT
CRANK LENGTH
6.5” CC
OUTER DIA
183.65
BB AXLE HOLE
15.86-15.92
ROOT DIA
169.85
COTTER PIN HOLE
9.55-9.63
PITCH CIRCLE DIA
177.85
LOCATION
4.76-5.13
THREAD
9.16-20 TPI
FINISHING
Chrome Plated or Powder Coated

Single Speed 36T Jumbo crank 5.5” CC with Guard



NO. OF TEETH
36
PITCH
12.7
TYPE
J/ CUT
CRANK LENGTH
5.5” CC
OUTER DIA
152.5
BB AXLE HOLE
15.86-15.92
ROOT DIA
137.4
COTTER PIN HOLE
9.55-9.63
PITCH CIRCLE DIA
145.7
LOCATION
4.76-5.13
THREAD
9.16-20 TPI
FINISHING
Chrome Plated or Powder Coated
